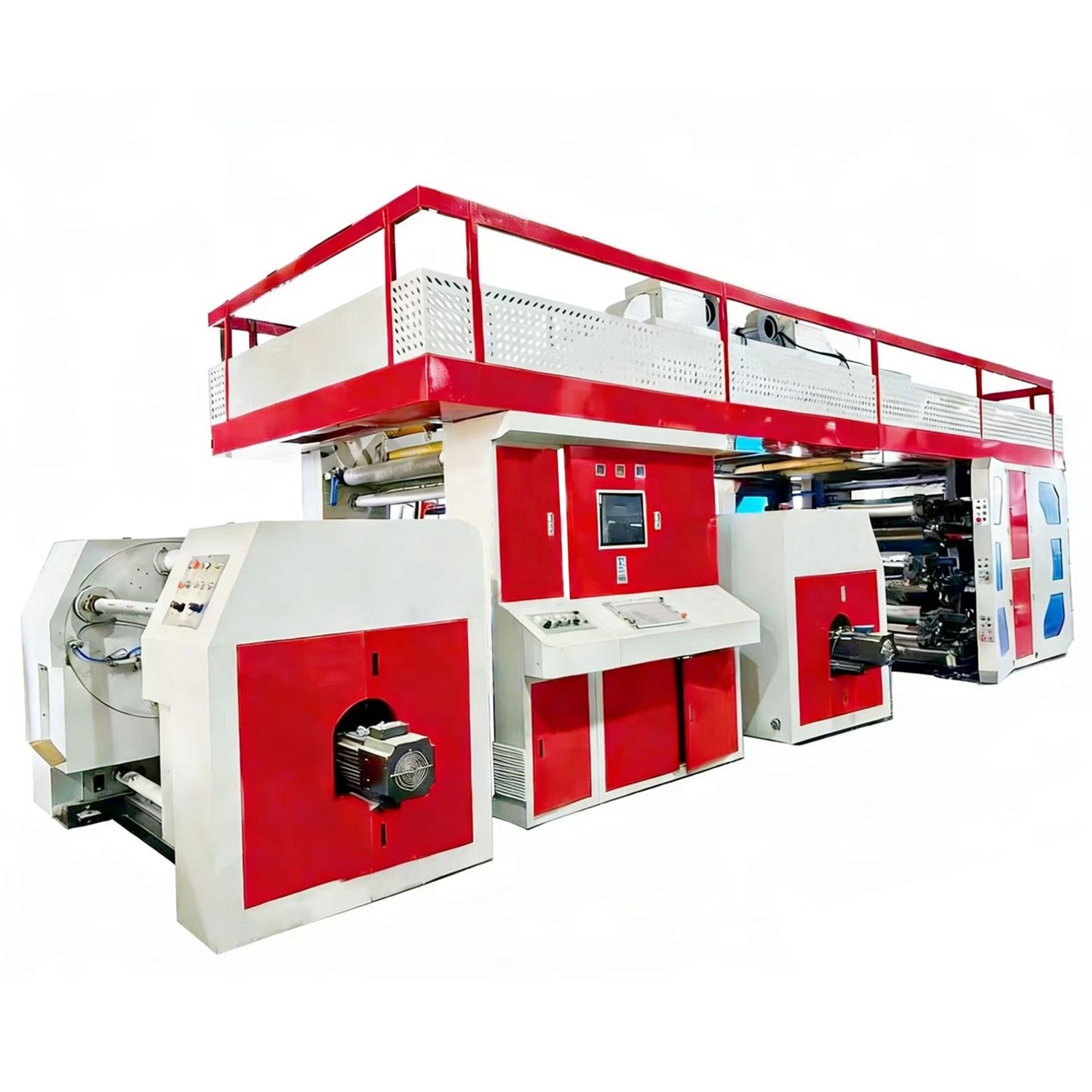

Non-stop winder Central Drum 6 Colour Flexo Printing Machine
Model: NXCI6
Non-stop winder Central Drum 6 Colour Flexo Printing Machine
- Technical Parameter
- Electrical Parameter
- Application Samples
Ci Flexo Press is also known as Central Drum Flexo Printing Machine. Suitable for paper, aluminum foil, non-woven fabric, plastic material, etc.
It is the most important model in flexo printing to obtain higher overprint accuracy and more stable performance.Ci Flexo Machine accounts for 70%~80% of all flexo printing machines. The focus of the introduction and production of flexo printing machines will gradually shift from narrow-width unit type to wide-width CI.
|
Model |
NXCI6-600 |
NXCI6-800 |
NXCI6-1000 |
NXCI6-1200 |
|
Max. Web Width |
600mm |
800mm |
1000mm |
1200mm |
|
Max. Printing Width |
560mm |
760mm |
960mm |
1160mm |
|
Max. Mechanical Speed |
250m/min |
|||
|
Max. Printing Speed |
200m/min |
|||
|
Max. Unwind/Rewind Dia. |
Φ800mm/Φ1000mm/Φ1200mm |
|||
|
Drive Type |
Central drum with Gear drive |
|||
|
Photopolymer Plate |
To be specified |
|||
|
Ink |
Water base ink or solvent ink |
|||
|
Printing Length (repeat) |
300mm-900mm |
|||
|
Range Of Substrates |
LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, |
|||
|
Electrical Supply |
Voltage 380V. 50 HZ.3PH or to be specified |
|||
Video Introduction:

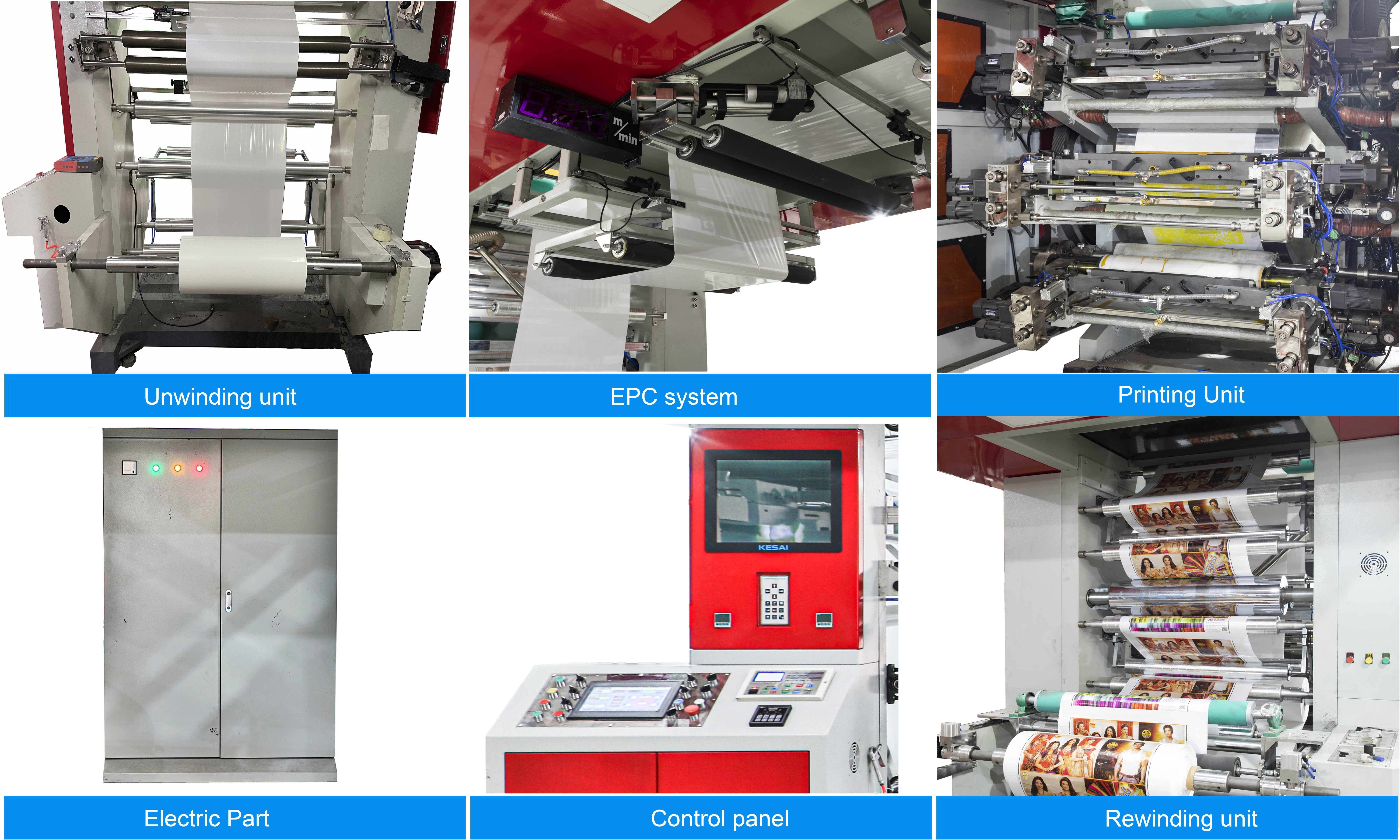

Parts Details Introduction:
Printing Sample Introduction:
Related Products
Machine Features
China Professional Flexo printing Machine Manufacturer
This machine is a printing machine using a photosensitive resin soft plate as a plate material, commonly known as "flexographic printing machine", "embossing printing machine", "flexo printing machine". Suitable for printing polyethylene, polypropylene, cellophane, plastic film (BOPP OPP PE PVC PET, etc.), non-woven fabric, woven bag, paper and other packaging materials, is food packaging, supermarket handbags, vest bags, clothing bags and other flexible packaging Ideal printing equipment.
Non-stop unwinding: automatic cut and continue printing
Snake Type EPC system, automatic track and correction system.
The The equipment is controlled by Innovance PLC and touch screen, centralized management & Control. The main electrical components are all internationally renowned brands to ensure the stability of equipment operation and the convenience of maintenance. Wires and electrical components can withstand the corrosion of ozone, alcohol, glutaraldehyde, peracetic acid, hydrogen peroxide, formaldehyde and other disinfectants that meet regulatory requirements for a long time.
The printing unit with ceramic anilox roller, chamber closed doctor blade which automatic pneumatic control, cost reduction & efficiency. which ensures precise ink printing, transfer ink uniform , more stable register, cost-saving and environmental advantages.
Non-stop rewinding: automatic exchange rolls
