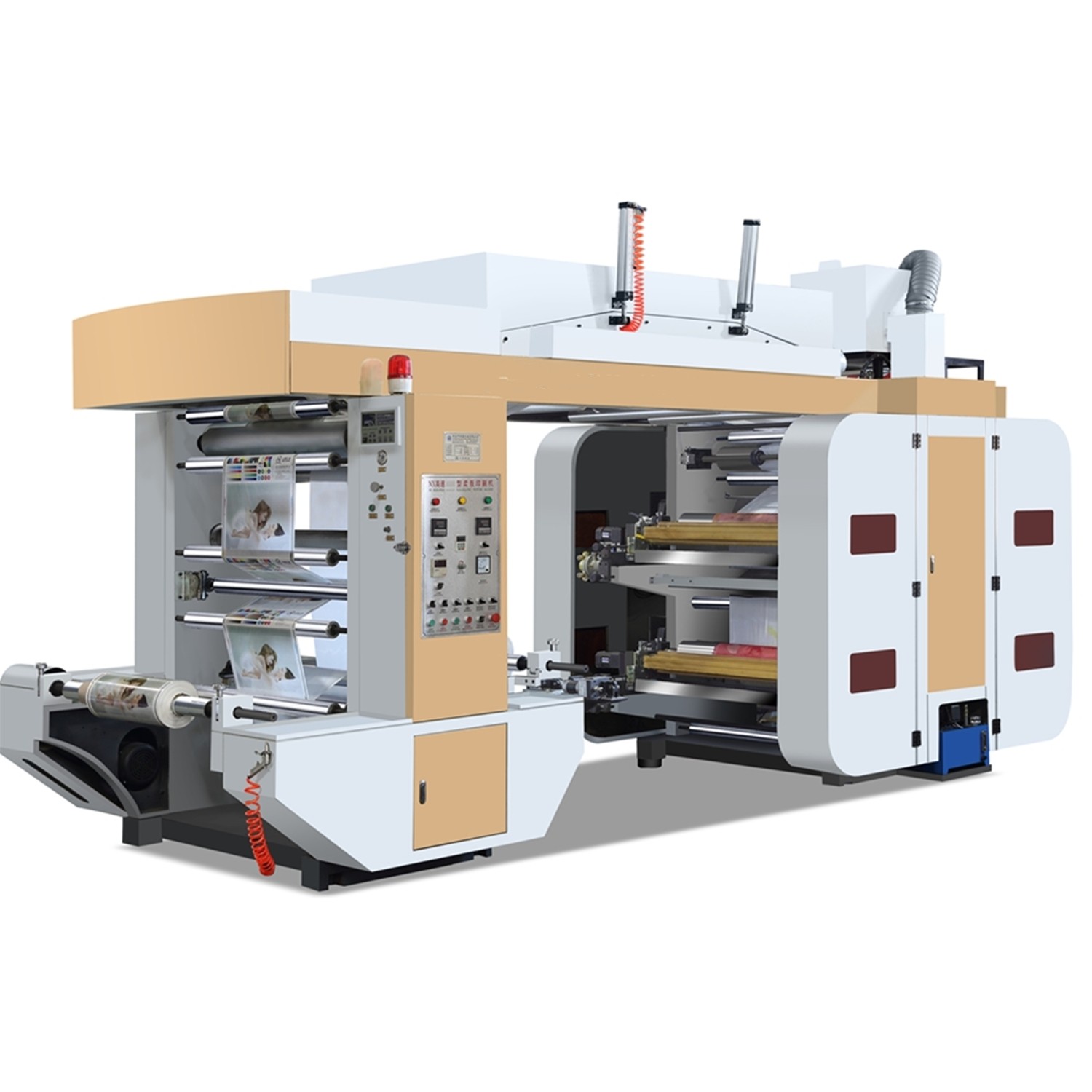

Stack 4 Colour Flexo Printing Machine
Model: NXT4
Stack 4 Colour Flexo Printing Machine
- Technical Parameter
- Electrical Parameter
- Application Samples
The stack flexo printing machine, often referred to as a flexographic stack press, is a specialized printing system where individual printing units are vertically or horizontally stacked, allowing for simultaneous multi-color printing on a wide range of materials.
Main Feature
1.High speed printing: Stack type flexo printing machines can print at very high speeds, making them more efficient and productive than other printing processes.
2.Versatile: Stack type flexo printing machines can print on a variety of materials, including plastic films, paper, paper Cup,Non Woven, andaluminum foil .
3.Precise registration: These machines have precision registration systems that ensure accurate alignment of colors and design elements during the printing process.
4.High quality: Flexo printing produces high-quality images with sharp lines and vibrant colors, making it a popular choice for flexible packaging and label printing.
5.Environmentally friendly: Flexo printing uses water-based inks that are eco-friendly, as they contain fewer harmful solvents than other printing processes.
Moreover, it generates less waste as it produces less scrap material.
|
Model |
NXT4-600 |
NXT4-800 |
NXT4-1000 |
NXT4-1200 |
|
Max. Web Width |
600mm |
800mm |
1000mm |
1200mm |
|
Max. Printing Width |
560mm |
760mm |
960mm |
1160mm |
|
Max. Mechanical Speed |
130m/min |
|||
|
Max. Printing Speed |
90m/min OR 120m/min |
|||
|
Max. Unwind/Rewind Dia. |
Φ1000mm/Φ1200mm |
|||
|
Drive Type |
Synchronous belt drive |
|||
|
Photopolymer Plate |
To be specified |
|||
|
Ink |
Water base ink or solvent ink |
|||
|
Printing Length (repeat) |
300mm-1200mm |
|||
|
Range Of Substrates |
LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, |
|||
|
Electrical Supply |
Voltage 380V. 50 HZ.3PH or to be specified |
|||
| more special width item |
To be specified |
|||
Video Introduction:
Parts Details Introduction:
Printing Sample Introduction:

Related Products
Machine Features
China Professional Flexo printing Machine Manufacturer
This machine is a printing machine using a photosensitive resin soft plate as a plate material, commonly known as "flexographic printing machine", "embossing printing machine", "flexo printing machine". Suitable for printing polyethylene, polypropylene, cellophane, plastic film (BOPP OPP PE PVC PET, etc.), non-woven fabric, woven bag, paper and other packaging materials, is food packaging, supermarket handbags, vest bags, clothing bags and other flexible packaging Ideal printing equipment.

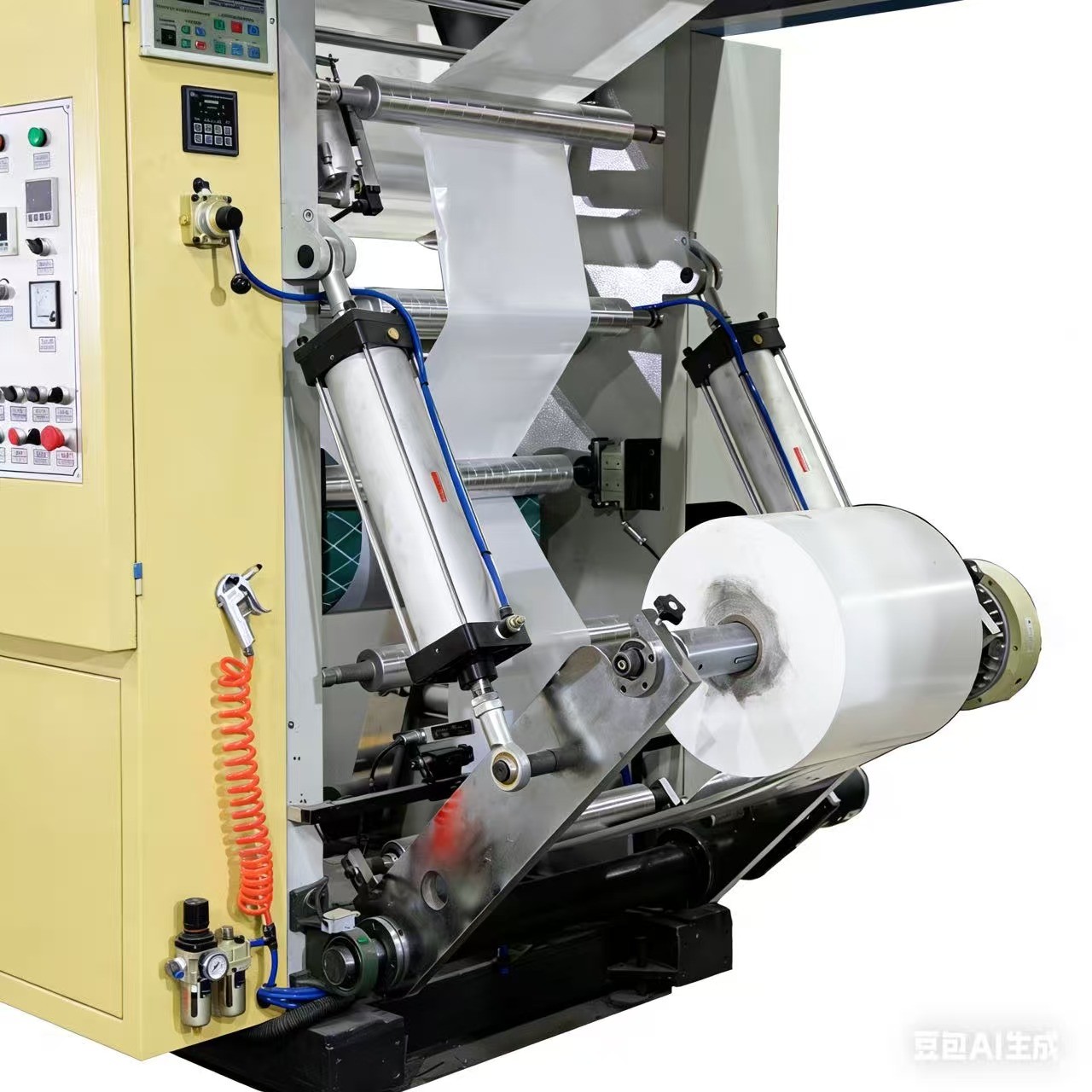

Single unwinder, 5kg magnetic powder and brake
automatic track and correction system.
hydraulic Plate rollers lift up and down

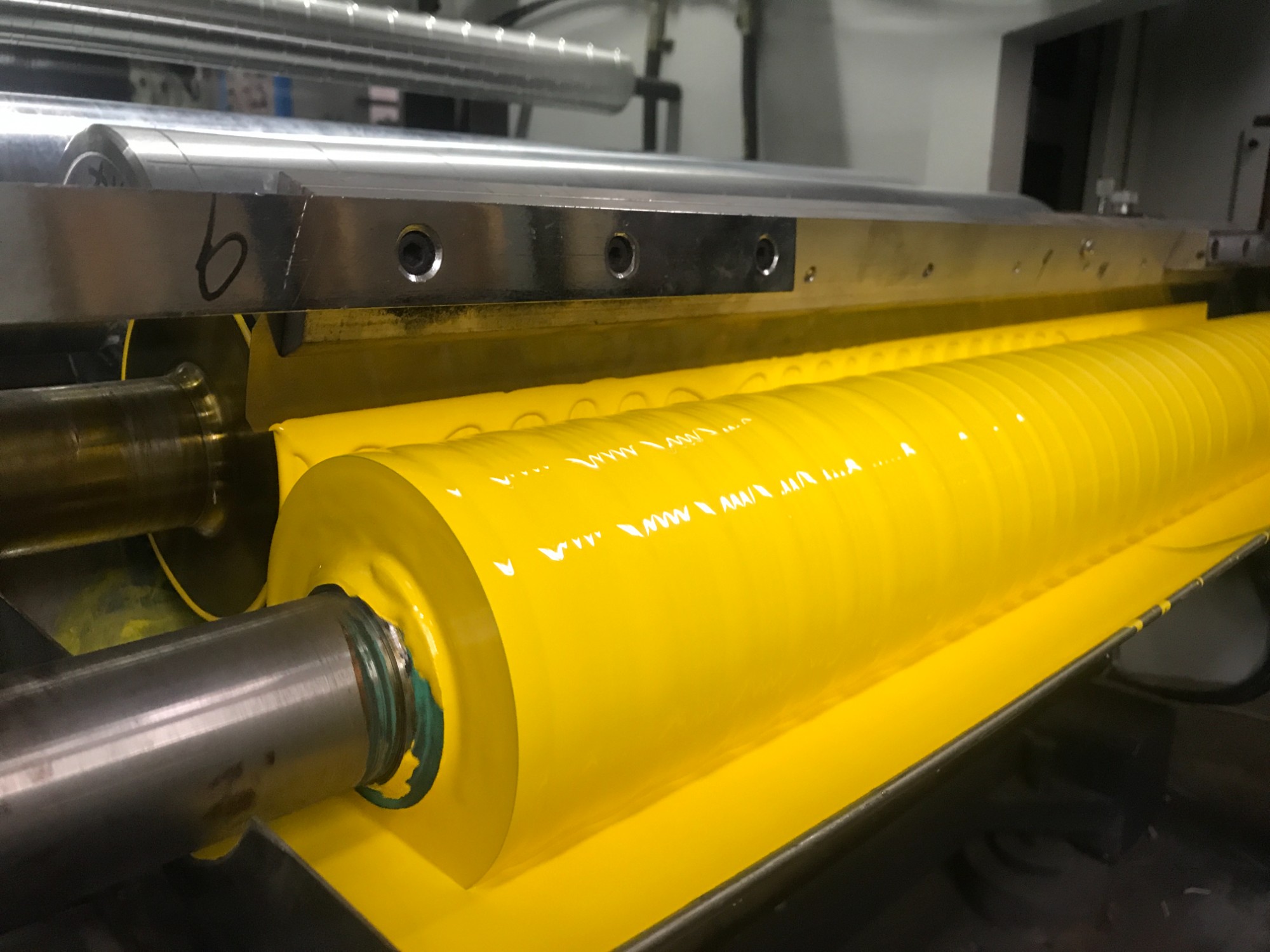

The printing unit with ceramic anilox roller, single doctor blade or chamber closed doctor blade which automatic pneumatic control, cost reduction & efficiency. which ensures precise ink printing, transfer ink uniform , more stable register, cost-saving and environmental advantages.
Single unwinder, 10kg magnetic powder and clutch
